MACHINE VISIONARY
Contrast’s VIA camera is a powerful FPGA–based machine vision camera system. Compact and robust, the VIA can provide complete solutions for the toughest real-time imaging challenges using our internal Elan processing engine. Contrast’s VIA 4K camera development platform integrates the Xilinx® Zynq® family of Field Programmable Gate Arrays (FPGA) in-camera to eliminate the need for external frame grabbers and high-powered GPUs.
*Xilinx® Zynq® MPSoC FPGA
4 GB DDR4 Component Memory
*ON Semiconductor® AR1820 Sensor
Power 12V, 24V
200 MHz PL Oscillator
Custom PCB Expansion Slots
2 x 16 GB Quad SPI Flash
.png)
EQUIPPED WITH REVOLUTIONARY TECHNOLOGY
Elan is a high-powered, configurable FPGA processing platform that eliminates the need for external acquisition systems such as frame grabbers. The Elan engine is fully adaptable to all your real-time image processing and development needs. Designed with extreme flexibility that will revolutionize the way on-board processing is done throughout the vision and imaging industry.
COMMAND AND CONTROL
• Web browser- based setup of camera
• Ability to define and record camera presets stored on the camera
• Auto-discovery of cameras on network
• Simple property-based API (Application Programming Interface)
• Live streaming preview of real-time video over Ethernet
• Linux Board Support Package (BSP) for deployment on camera specific applications
• Camera management suite in order to manage multiple cameras on a network
SPECIFICATIONS
Active Resolution
4912 x 3684 (4K Cinema Resolution)
Resolution
4K24, 4K30, 1080p30, 1080p60, 1080p120
720p60, 720p120, 720p240
Output
Gigabit Ethernet, USB 3.0 Host, Mini Display Port
Power Supply
12V, 24V, Power over Ethernet (PoE)
5-20W
Power Consumption
C - Mount
Lens Mount
2.5H x 4.6L x 2.8W inches
( does not include lens )
Mechanical
Weight
1 lb
Browser based GUI
Interface
Software
Software Development Kit (SDK)
allows for customization
*Xilinx® Zynq® and ON Semiconductor® are registered trademarks
Specifications are subject to change

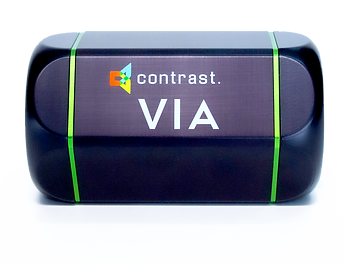

1 SENSOR
DEVELOPMENT PLATFORM CAMERA
Contact us to build your VIA today.
